Galvanized steel poles
There are two different types of steel galvanization that we apply to our poles. The first one is Sendzimir Coating which is obtained immerging steel into a molten zync bath at 700°C. Zync coating designation: Z275.

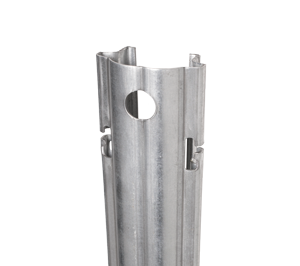

ESPALIER VINEYARD STANDARD POLE
Galvanized steel pole suitable for vineyards. Supporting wires are placed in lateral loops.
Sendzimir Galvanized Steel
Hot-dip Galvanized Steel
Section 60 x 45 mm

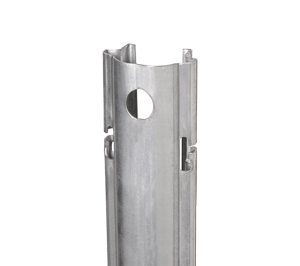

ESPALIER VINEYARD POLE
Galvanized steel pole suitable for vineyards. Supporting wires are placed in lateral loops. It has bigger dimensions than the standard version.
Sendzimir Galvanized Steel
Hot-dip Galvanized Steel
Section 50 x 45 mm

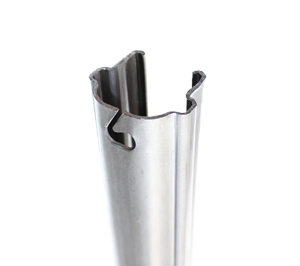

FREE CORDON VINEYARD POLE
Galvanized steel pole suitable for free cordon trained vineyards. The central wire can be placed in a crack on the top of the pole.
Sendzimir Galvanized Steel
Hot-dip Galvanized Steel
Section 50 x 45 mm
Section 60 x 45 mm

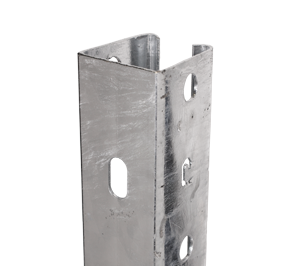

HEADPOST
Galvanized head post for vineyard. Lateral holes for wire-tensioning rollers.
Sendzimir Galvanized Steel
Hot-dip Galvanized Steel
Section 65 x 55 mm
Weathering steel poles
Weathering steel, best known as CORTEN steel is a group of steel alloys which were developed to eliminate the need for painting, and form a stable rust-like appearance if exposed to the weather for several years. In producing our corten steel poles for vineyards we choose one main type of steel: S300JOW with a resistance of 450 RpMa. The core feature of cor-ten pole its their ability to self-protect against athmospheric agents without any need of treatment along time. The corrosion-retarding effect of the protective layer is produced by the particular distribution and concentration of alloying elements in it. The layer protecting the surface develops and regenerates continuously when subjected to the influence of the weather. In other words, the steel is allowed to rust in order to form the ‘protective’ coating.

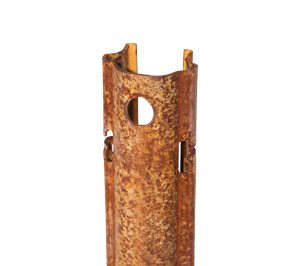

CORTEN STEEL STANDARD POLE
Corten steel pole resistant to corrosion suitable for vineyards. Supporting wires are placed in lateral loops.
COR-TEN (S300JOW)
Section 60×45 mm

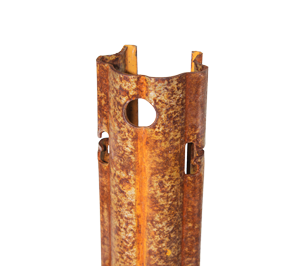

CORTEN STEEL POLE
Corten steel pole resistant to corrosion. This new version is larger than the standard model and has lateral holes for supporting wires.
COR-TEN (S300JOW)
Sezione 50×45 mm
CORTEN STEEL POLE FOR FREE CORDON
Weathering Steel (Cor-ten) Pole for free cordon trained vineyard. No lateral loops, the central wire can be placed in a dedicated split located on the top of the pole.
COR-TEN (S300JOW)
Sezione 50×45 mm
Sezione 60×45 mm

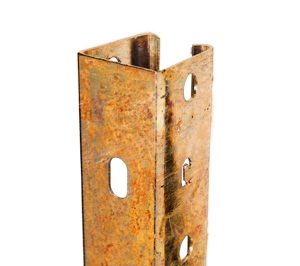

CORTEN STEEL HEAD-POST
Corten steel head-post for vineyard. U-shaped outline very strong with elevated thickness for better supporting vine rows. Lateral and central holes for wire-tensioning rollers.
COR-TEN (S300JOW)
Sezione 65×55 mm
Download the brochure with of all our steel poles.
